Features
·
RS485 Communication Interface( standard MODBUS-RTU protocol)
· Netting
Available
· Support
software or button adjustment, flexible and convenient
· Classified
code management for parameter set of different users to ensure safety and
reliability
· Great
output consistency and replaceable.....
· Support
offset set and range adjustment
· Aluminum
alloy housing and IP65 protection
· Support
cutomized solution according to different applications
Pressure type: Gauge / Absolute/Sealed Gauge
Accuracy: ±0.5%FS
Thermal error: ≤±0.04%FS/℃(≤100kPa);
≤±0.03%FS/℃(＞100kPa)

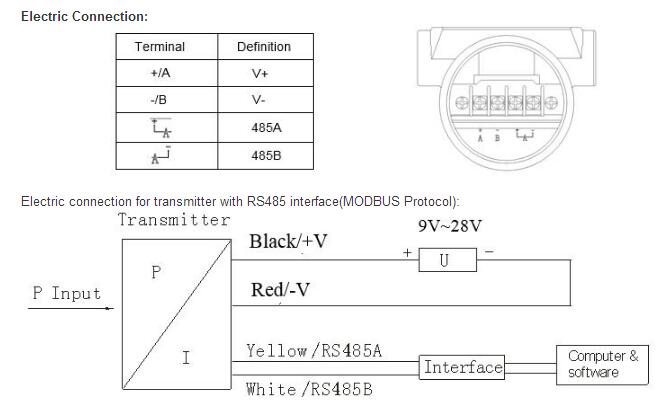

Output: RS485 Interface (MODBUS-RTU
protocol)
Display Range: -1999~9999
Limit Working Temperature: -30℃~85℃
Measurement Error: ±2℃( For“temperature & pressure
type” only )
Shoc: 5g, 10Hz~200Hz
<p
margin-left:-.2pt;mso-para-margin-left:-.02gd'="" style="box-sizing: border-box;
margin: 0px; padding: 0px; outline: none; color: rgb(102, 102, 102);
font-family: Arial, Helvetica, sans-serif, Verdana; font-size:
13.3333px;">Impact: 20g, 11ms
Protection:IP65
Order
Note：
1.
We can also provide the user with voltage power supply product, the power supply
is more than 9V; please note it when you select option codes;
2.
When the user install flush diaphragm product at local place, please pay
attention to correct sealing method to prevent the stress affecting product
stability;
3.
If the customer has special requirement, please feel free to contact our
company.
Order
Note：
1.
We can also provide the user with voltage power supply product, the power supply
is more than 9V; please note it when you select option codes;
2.
When the user install flush diaphragm product at local place, please pay
attention to correct sealing method to prevent the stress affecting product
stability;
3.
If the customer has special requirement, please feel free to contact our
company.
